This document describes a type of Drehstrommotoren mit Käfigläufer Normmotoren Graugussgehäuse motor with the model IE2-WE1R 225 S4 HW, which features a rated power of 37 and a rated torque of 240.

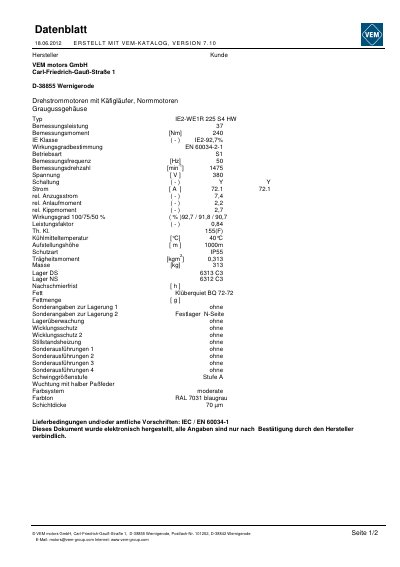

This document is a technical datasheet for the VEM IE2-WE1R 225 S4 HW three-phase induction motor with a squirrel-cage rotor. The motor features a cast iron housing and is designed for continuous duty (S1) at 50 Hz and 1475 rpm. It operates with a rated power of 37 kW and a rated voltage of 380 V. This manual is written in German.
| Rated Power | 37 kW |
|---|---|
| Rated Torque | 240 Nm |
| Efficiency Class | IE2 |
| Efficiency (100%) | 92.7% |
| Rated Speed | 1475 rpm |
| Rated Current | 721 A |
| Mounting Height | 1000 m |
| Housing Material | Cast Iron |
| Color System | RAL 7031 |
| Bearing Type | 6313 C3 / 6312 C3 |
