This document describes the technical parameters and characteristics of a gear pump, including the pump's materials, operating parameters, and sealing methods.

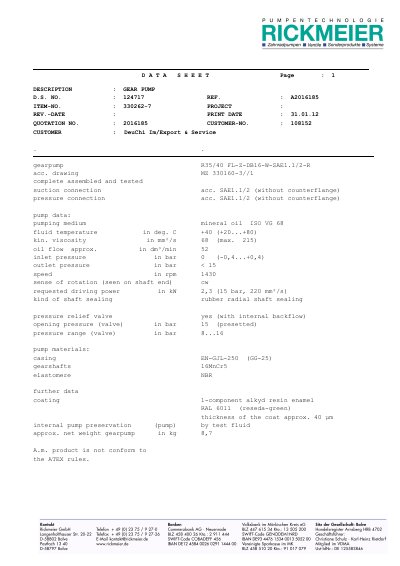

This document is a technical data sheet for the Rickmeier R35/40 FL-Z-DB16-W-SAE1.1/2-R gear pump. It provides specific operational data including oil flow, pressure ratings, speed, and driving power requirements. The pump is designed for mineral oil ISO VG 68 with a fluid temperature range of +20 to +80 degrees Celsius. This manual is written in German.
| Pumping Medium | Mineral oil ISO VG 68 |
|---|---|
| Pressure Relief Valve | Yes (with internal backflow) |
| Opening Pressure (Valve) | 15 bar |
| Pressure Range (Valve) | 8...16 bar |
| Casing Material | EN-GJL-250 (GG-25) |
| Gearshaft Material | 16MnCrs5 |
| Elastomere Material | NBR |
| Coating | 1-component alkyd resin enamel RAL 6011 |
| Coating Thickness | approx. 40 pm |
| Net Weight | 8,7 kg |
The approximate net weight is 8.7 kg.
