This document is about the detailed technical information of the gear pump product of the German DEUCHI company, including the pump model, material, flow rate, pressure, temperature and other parameters.

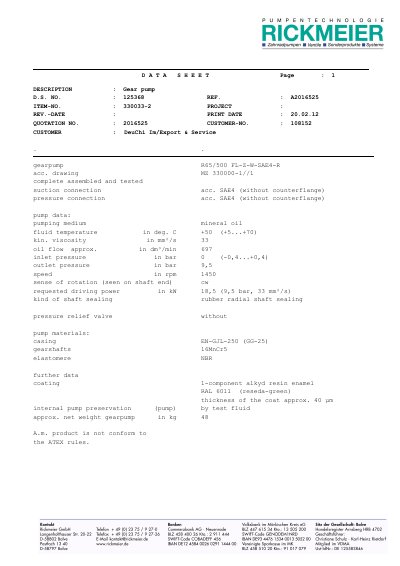

This document is a datasheet for the Rickmeier R65/500 FL-Z-W-SAE4-R external gear pump. It provides technical data regarding the pumping medium, fluid temperature limits, kinematic viscosity, oil flow rate, inlet and outlet pressures, rotational speed, driving power requirements, and shaft sealing type.
The datasheet also lists the materials used for the casing (EN-GJL-250), gearshafts (16MnCr5), and elastomere seals (NBR). Additional information includes coating details, internal preservation methods, approximate net weight, and contact information for Rickmeier GmbH.
| Pumping medium | mineral oil |
|---|---|
| Fluid temperature range | +50 (45...+70) deg. C |
The specified fluid temperature range is between +45 and +70 degrees Celsius.
The pump can operate with fluids up to 50 degrees Celsius.
