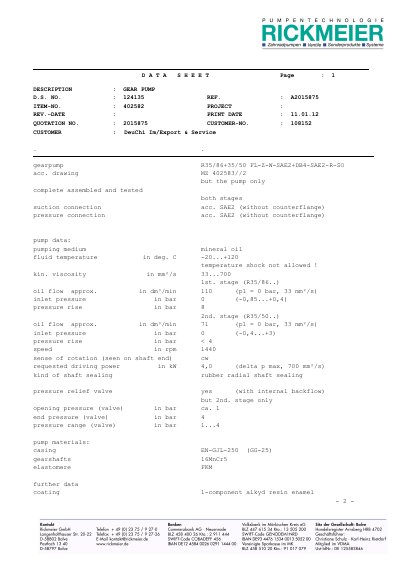

RICKMEIER R35/86 35/50 FL-Z-W-SAE2 DB4-SAE2-R-SO technology data
This document is a technical datasheet for a complete assembled and tested two-stage gear pump manufactured by Rickmeier GmbH. The unit combines an R35/86 stage with an R35/50 stage, configured according to specific SAE2 connection standards without counterflanges.
The data sheet provides detailed operational parameters such as oil flow rates (110 dm³/min for the first stage and 71 dm³/min for the second), pressure rise capabilities, and maximum fluid temperature limits of +120°C. It also lists material specifications for the casing and gearshafts, along with contact information for the manufacturer. This manual is written in German.
RICKMEIER R35 specifications
| Fluid Temperature Range | -20...+120 deg. C |
|---|---|
| Kinematic Viscosity Range | 33...700 mm²/s |
| Oil Flow (1st Stage) | approx. 110 dm³/min |
| Pressure Rise (1st Stage) | 8 bar |
| Oil Flow (2nd Stage) | approx. 71 dm³/min |
| Pressure Rise (2nd Stage) | <4 bar |
| Speed | 1440 rpm |
| Sense of Rotation | cw (seen on shaft end) |
| Requested Driving Power | 4.0 kw |
| Casing Material | EN-GJL-250 (GG-25) |
| Gearshaft Material | 16MnCrs5 |
| Elastomer Type | FKM |
| Approx. Net Weight | 19.5 kg |
Source: RICKMEIER R35/86 35/50 FL-Z-W-SAE2 DB4-SAE2-R-SO technology data
All RICKMEIER R35 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum fluid temperature allowed?
The fluid temperature must be between -20 and +120 degrees Celsius.
From: RICKMEIER R35/86 35/50 FL-Z-W-SAE2 DB4-SAE2-R-SO technology data
Is a pressure relief valve included?
Yes, the pump includes a pressure relief valve with internal backflow for the first stage only.
From: RICKMEIER R35/86 35/50 FL-Z-W-SAE2 DB4-SAE2-R-SO technology data
What is the approximate net weight of the gearpump?
The approximate net weight is 8.7 kg.
