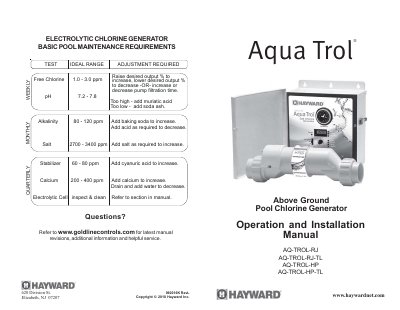

This document is an operation and installation manual for an above ground pool chlorine generator. The manual includes basic pool maintenance requirements such as ideal ranges for free chlorine concentration, pH level, alkalinity, salt level, stabilizer level, and calcium level, as well as the corresponding adjustment methods. Additionally, the manual provides a guide for inspecting and cleaning the electrolytic cell.
The Hayward Aqua Trol is an automatic chlorine generation system designed specifically for residential above-ground swimming pools. It utilizes a built-in filter pump timer to control daily filtration and sanitization by converting salt into free chlorine through the process of electrolysis. The system eliminates the need for frequent addition of sanitizing chemicals, recycling the reaction products back into sodium chloride.
| Pool Capacity | up to 18,000 gallons (67,500 liters) |
|---|---|
| Free Chlorine Range | 1.0 - 3.0 ppm |
| pH Range | 7.2 - 7.8 |
| Alkalinity Range | 80 - 120 ppm |
| Salt Concentration | 2700 - 3400 ppm |
The Aqua Trol will stop generating chlorine because cold water causes it to cease operation.
You must inspect and clean the cell according to the directions in the manual.
A possible Printed Circuit Board fault has been detected, indicated by all 4 red/yellow LEDs being illuminated.
