This manual introduces the product features of MHD type gear oil flow distributor, including model, technical parameters, operating conditions, installation dimensions and other information.

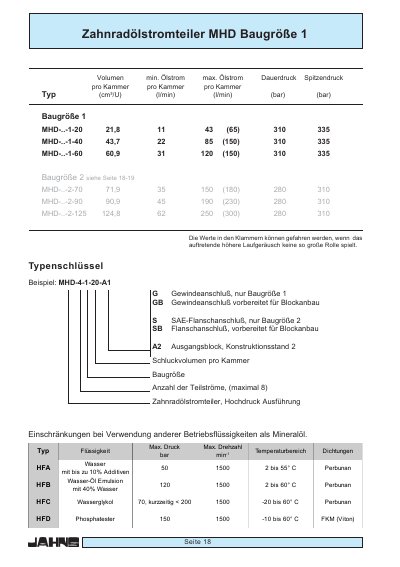

This document provides technical specifications for the JAHNS MHD series of high-pressure gear pumps, specifically size 1. It details performance metrics such as minimum and maximum flow rates, continuous and peak pressure capabilities, and maximum operating temperatures for various fluid types.
The datasheet also includes information on connection types (threaded, flange), construction standards (e.g., output block A2), and restrictions regarding the use of fluids other than mineral oil, specifying temperature ranges and compatible seal materials like Perbunan and FKM. This manual is written in German.
| Min. Flow Rate (Size 1) | 21.8 cm3/U |
|---|---|
| Max. Flow Rate (Size 1) | 11 l/min |
| Continuous Pressure | 43 bar |
| Peak Pressure | 310 bar |
| Max. Temp. for HFA | 55°C |
| Max. Temp. for HFC | 60°C |
The maximum pressure for HFD (Phosphate ester) is 150 bar.
No, values in parentheses can be exceeded if higher operating noise is not a significant issue.
