This document introduces the cast gear oil flow divider HTO series from Jahns Hydraulik, including its usage limitations, applicable fluid types, and operating parameters. The document also provides detailed specifications and connection methods for various models.
This document provides technical specifications for the Jahns Hydraulik HTO series of gear pump dividers. It lists performance data for various models, specifically highlighting the HTO-..-35 and HTO-..-80 variants with their respective chamber volumes and maximum pressures.

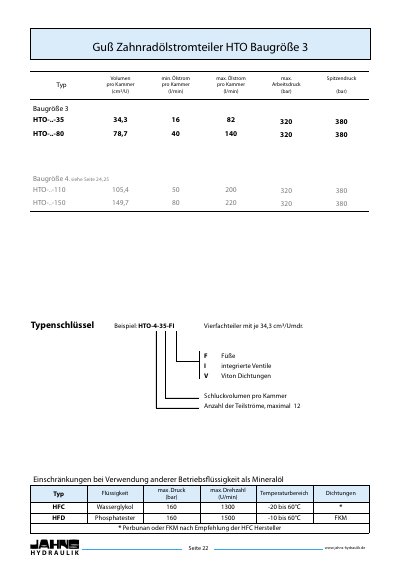

The datasheet details physical dimensions, connection types (SAE, G, M), weight per chamber, and compatible hydraulic fluids such as water-glycol and phosphate esters. It also notes that the illustrated devices are 4-way dividers and provides instructions for modifying lengths for different numbers of chambers. This manual is written in German.
| Max. Flow per Chamber (HTO-..-35) | 16 cm³/Umdrehung |
|---|---|
| Weight per Chamber | 40 kg/Kammer |
| Connection Type TANS | G3/4" |
The maximum working pressure is rated at 6000 psi.
Each chamber weighs 40 kg.
