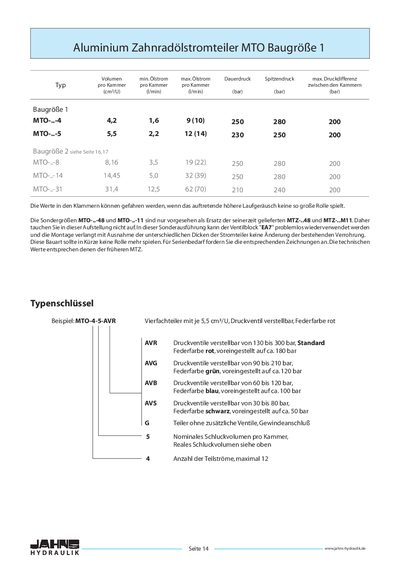

This is a product manual that introduces the features and specifications of the MTO type aluminum gear oil flow divider.
The document provides specifications for the aluminium gear‑type flow splitters of the JAHNS MTO series. It lists nominal chamber volumes, pressure‑valve ranges and weight per chamber for the various MTO models.
Additional information includes the interchangeable valve blocks, recommended drawings for series production and details on the mounting dimensions and pressure‑difference limits. This manual is written in German.
| Weight per chamber (MTO‑4) | 1.1 kg |
|---|---|
| Weight per chamber (MTO‑5) | 1.2 kg |
The MTO‑4 chamber weighs 1.1 kg.
The nominal chamber volume for MTO‑4 is 4.2 cm³.
