CAMILLE BAUER 84-2I1-11 84-2I1-12 technology data

Q: Does the SINEAX 211 require a power supply?

No, it does not require an external power supply unit.

Q: What is the transformation ratio of the isolator?

The input signal to output signal ratio is 1:1.

Q: Is the device suitable for intrinsically safe applications?

Yes, it is available in a type of protection 'Intrinsic safety' [EEx ib] IIC.

SINEAX 2I1 is a passive DC signal isolator designed to isolate load-independent DC current signals. It suppresses noise voltages and currents in a signal loop circuit.

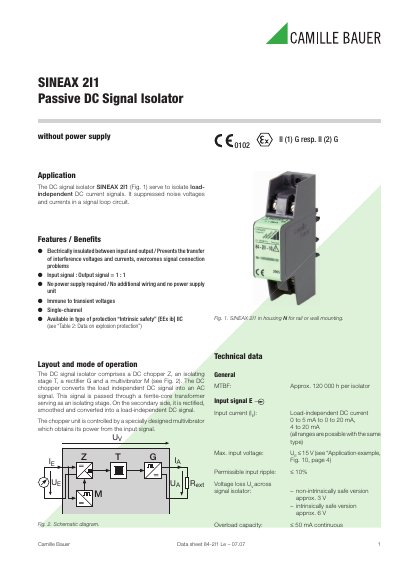

CAMILLE BAUER 84-2I1-11 84-2I1-12 technology data - cover page

Brand: Camille
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 121 KB
Published: 10 July, 2012
Updated: 28 September, 2023
MD5 checksum: 2DBEC80ED3A46FD4460F219EE28276B6
PDF: CAMILLE BAUER 84-2I1-11 84-2I1-12 technology data PDF

About this manual

The document describes the SINEAX 211, a passive DC signal isolator designed to isolate load-independent DC current signals. It operates without an external power supply by using a DC chopper and ferrite-core transformer to transfer signals between input and output while suppressing noise voltages and currents.

What's inside

Application
Features / Benefits
Layout and mode of operation
Technical data - General
Accuracy data
Installation data
Regulations
Environmental conditions
Table 2: Data on explosion protection
Dimensional drawings

Specifications

Input signal type	Load-independent DC current
Residual ripple in output current	<= 0.5% (7 kHz)
Output load voltage (non-intrinsically safe)	approx. 3 V
Operating temperature (standard version)	-25 to +55 °C
