SINEAX V611 is a two-wire transmitter that can measure thermocouples and RTDs and automatically compensate for the non-linearity of thermocouples. The output signal is a 4 to 20 mA current signal. Input variables and measurement ranges are programmed by a PC and the corresponding software. Sensor open and short circuit monitoring, response output is determined by the setting. The power supply (12 ... 30 VDC) and the measurement output (loop power supply) signals are connected together by two wires.

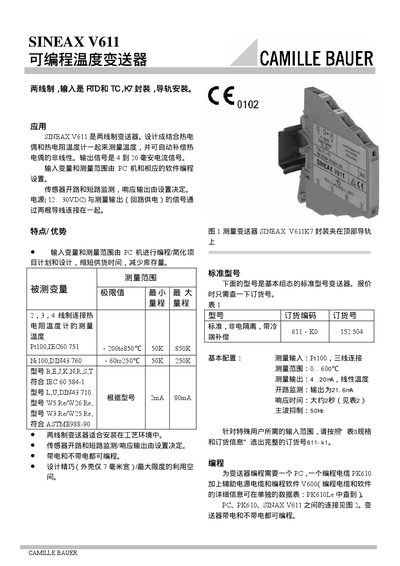

This manual describes the SINEAX Ve11 temperature transmitter, including its features, wiring, and configuration options. It explains how to connect the device to a PC running Windows 95 or later and use the supplied CD for programming and data acquisition.
The document also lists technical specifications such as measurement range, sensor compatibility, output signal, and supply voltage, and provides details on mounting, environmental ratings, and available accessories. This manual is written in Chinese.
| Output signal | 4 to 20 mA |
|---|---|
| Supply voltage | 12 to 30 VDC |
| Supported RTD sensors | Pt100, Ni100 |
| Supported thermocouple types | B, E, J, K, L, N, R, S, T, U, W |
The device outputs a current signal of 4 to 20 mA.
The unit requires a DC supply of 12 to 30 V.
