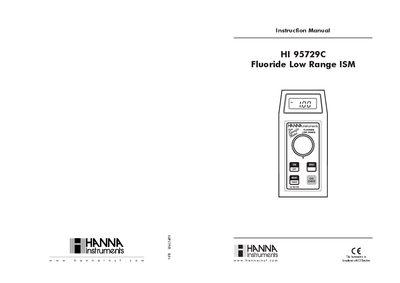

This document is an instruction manual for HI 95729C Fluoride Low Range ISM
The HI 95729 is an auto-diagnostic portable microprocessor meter designed to measure fluoride levels in drinking, surface, and waste waters within a range of 0.00 to 2.00 mg/L (ppm). The instrument utilizes an advanced optical system based on a tungsten lamp and a narrow band interference filter at 575 nm, employing the SPADNS method adapted from EPA Method 340.1.
The device features a positive-locking cuvet system to ensure consistent positioning for accurate readings. It includes factory calibration with an option to restore it via the CAL CHECK function and utilizes a 9V battery. The meter is splash-proof and equipped with display codes to aid routine operation, including auto-shutoff after periods of non-use.
| Range | 0.00 to 2.00 mg/L |
|---|---|
| Resolution | 0.01 mg/L |
| Precision | +/-0.03 mg/L @ 1.00 mg/L |
| Light Source | Tungsten lamp with narrow band interference filter @ 575 nm |
| Light Detector | Silicon Photocell |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Dimensions | 180 x 83 x 46 mm (7.1 x 3.3 x 1.8") |
The instrument measures fluoride content in the 0.00 to 2.00 mg/L (ppm) range.
The HI 95729 measures fluoride content in the 0.00 to 2.00 mg/L (ppm) range.
The meter is designed for measuring fluoride in drinking, surface and waste waters.
The instrument turns off after 10 minutes of non use or after 1 hour if left in calibration mode.
