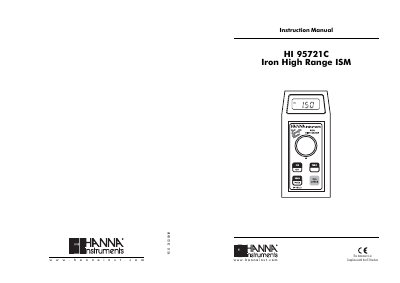

This document is an instruction manual that provides information on the use and specifications of the HI 95721C Iron High Range ISM iron high concentration meter.
The HI 95721C is an auto diagnostic portable microprocessor meter designed to measure total iron (Fe) content in water samples within the 0.00 to 5.00 mg/L range. It features an advanced optical system based on a special tungsten lamp and a narrow band interference filter, along with a powerful CAL CHECK validation function to ensure performance. The instrument is splash waterproof and includes an auto-shut off feature.
| Range | 0.00 to 5.00 mg/L |
|---|---|
| Resolution | 0.01 mg/L |
| Precision | +0.01 mg/L @ 1.50 mg/L |
| Light Source | Tungsten lamp with narrow band interference filter @ 525 nm |
| Light Detector | Silicon Photocell |
| Environment | 0 to 50°C (32 to 122°F); max 95% RH non-condensing |
| Battery Type | 1x9 volt |
| Auto-Shut off | After 10' of non-use in measurement mode; after 1 hour of non-use in calibration mode |
| Dimensions | 180 x 83 x 46 mm (7.1 x3.3 x 1.8") |
The meter measures total iron content in the 0.00 to 5.00 mg/L (ppm) range.
The required reagent is HI 93721-0 Iron HR Reagent, with 1 packet needed per test.
The instrument will automatically turn off after 1 hour of non-use.
