Eugen Seitz 3/2-Wedge Magnetventil 464 D Data Sheet

About this manual

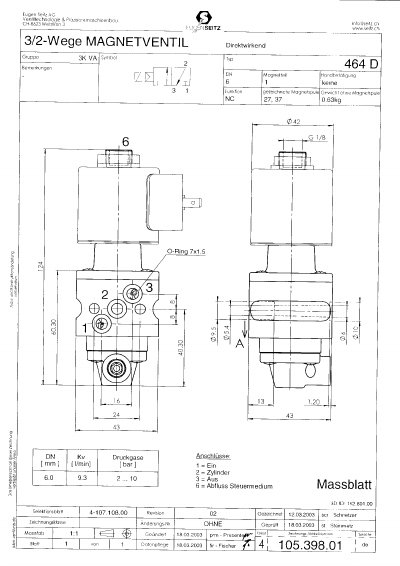

This document is a technical data sheet (Datenblatt) for the Eugen Seitz AG model 464 D, a 3/2-way wedge magnet valve designed as a direct-acting type. It includes identification symbols and functional descriptions.

The specification table lists key parameters such as weight without coil (0.63 kg), O-ring dimensions (7x1.5 mm), and connection details for air supply, cylinder, exhaust, and control medium. This manual is written in German.

What's inside

• Identifikation
• Funktionen
• Gewicht
• Anschlüsse
• Steuermedium
• Technische Daten

Frequently asked questions

How much does the unit weigh without its coil?

The weight is 0.63 kg when the magnet coil is removed.
