This document is about the technical details and specifications of a solenoid coil that is used for a certain valve. The solenoid coil has an IP 54 protection rating and is suitable for voltage ranges from 6V AC to 250V AC with a rated power of 5W / 8VA. The solenoid coil has a rated operating mode of S1 and can be used in environments and media temperatures ranging from -20°C to +60°C.

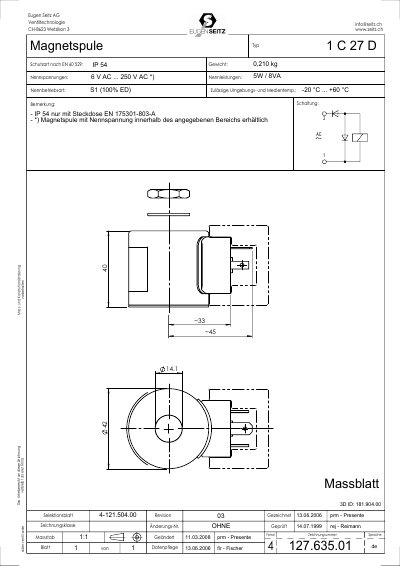

This document provides technical specifications for the Eugen Seitz 1C27D magnet coil (solenoid). It details the product's weight, protection class, and operating temperature range. The data sheet also lists available nominal voltages ranging from 6VAC to 250VAC. This manual is written in German.
| Product Type | Magnetspule (Solenoid) |
|---|---|
| Protection Class | IP54 |
| Weight | 0.210 kg |
| Nominal Voltages | 6VAC...250VAC |
| Nominal Power Ratings | 5W / 8VA |
The weight of the solenoid is 0.210 kg.
The rated voltages are 6VAC through 250VAC.
The operating temperature range is from -20 C to +60 C.
