This is a 3/2-Way MAGNETVENTIL Fremdmedium vorgesteuert Gruppe 3K VA manual

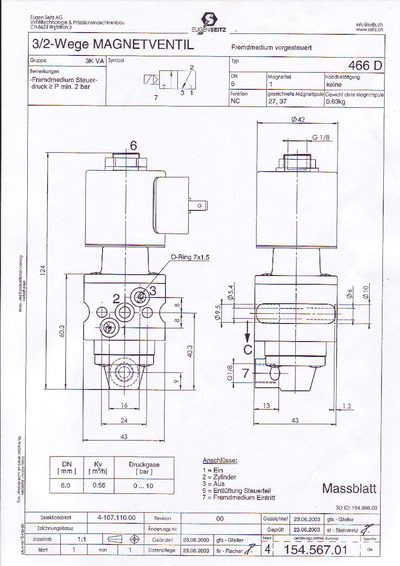

This document is a technical data sheet for the Eugen Seitz 466 D solenoid valve. It is an externally actuated (Fremdmedium vorgesteuert) 3/2-way valve designed for pneumatic applications.
The sheet provides key specifications such as the nominal diameter (DN), connection size (G1/8), and weight without the solenoid coil (0.63 kg). It also details the port configuration for pressure, cylinder, exhaust, and external medium, along with the O-ring size used for sealing. This manual is written in German.
| Valve Type | 3/2-way solenoid valve |
|---|---|
| Actuation Type | Externally actuated |
| O-Ring Size | 7x1.5 |
