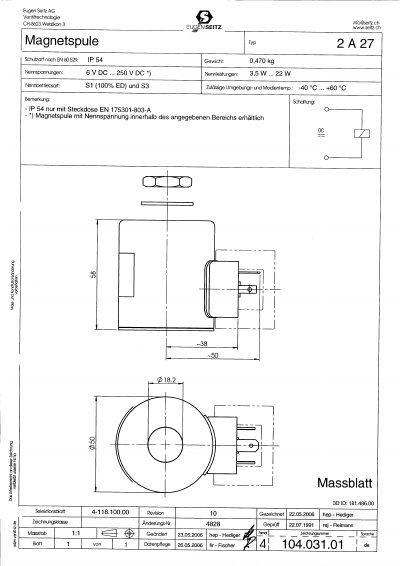

Eugen Seitz 2A2Z Vent Valve Solenoid Data Sheet

This is a 2427 type magnet coil produced by Eugen Seitz AG

Brand: Eugen
Category: Other Electronics
Document type: Product Leaflet
Language: German
Pages: 1
File format: PDF
File size: 48 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 90E6711104CE9D0380CF036253F637CD
PDF: Eugen Seitz 2A2Z Vent Valve Solenoid Data Sheet PDF

About this manual

This document is a technical data sheet for the Eugen Seitz 2A2Z vent valve solenoid. It provides key specifications including nominal voltage ranges, power consumption, and weight. This manual is written in German.

What's inside

Product Identification
Electrical Ratings
Power Consumption
Environmental Conditions
Protection Class
Ordering Information

Specifications

Product Name	Magnetspule mp 2A2Z
Weight	0.470 kg
Nominal Voltage	6VDC ... 250 VDC
Nominal Power	3.5W ... 22 W
Operating Duty	S1 (100% ED) and S3
Operating Temperature	-40 C ... +60 C
Protection Class	IP 54

Frequently asked questions

What is the weight of the 2A2Z solenoid?

The magnet coil weighs 0.470 kg.

What is the maximum operating temperature for this valve?

The device is approved for ambient and medium temperatures up to +60 C.

What voltage range is supported by the magnet coil?

The magnet coil is available for nominal voltages between 6VDC and 250 VDC.
