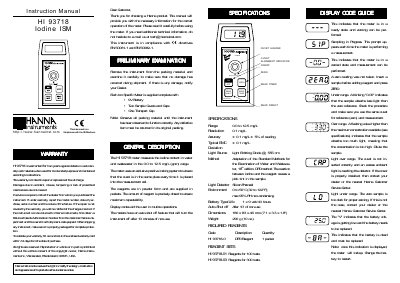

This document is an instruction manual for the HI 93718 Iodine ISM instrument. The instrument complies with CE directives and is warranted for two years. It should be used for its intended purpose and maintained according to instructions. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered. If service is required, contact the dealer from whom you purchased the instrument. To validate the warranty, fill out and return the enclosed warranty card within 14 days from the date of purchase.
The HI 93718 is a portable instrument designed to measure iodine content in water and wastewater within a range of 0.0 to 12.5 mg/L. It utilizes the DPD method and features an exclusive positive-locking system for the cuvet to ensure consistent placement during measurements. The device includes an auto-shut-off function and displays results on a liquid crystal screen.
| Range | 0.0 to 12.5 mg/L |
|---|---|
| Resolution | 0.1 mg/L |
| Light Source | Light Emitting Diode @ 555 nm |
| Battery Life | 40 hours |
| Auto-Shut off | After 10 minutes of non-use |
| Dimensions | 180 x 83 x 46 mm |
The meter measures iodine content in the 0.0 to 12.5 mg/L (ppm) range.
The instrument is powered by one 9V battery which provides approximately 40 hours of operation.
