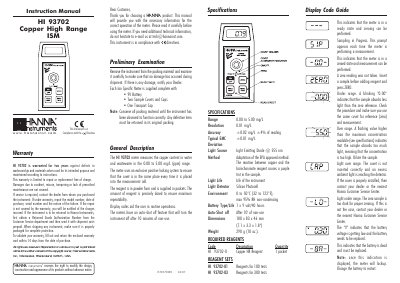

This manual introduces the use of HI 93702 copper high range meter, including measurement range, resolution, accuracy, light source, method, environment, battery, size, weight, required reagents, etc.
The HI 93702 is a portable instrument designed to measure copper concentration in water and wastewater samples within the range of 0.00 to 5.00 mg/L (ppm). It utilizes an exclusive positive-locking system for cuvet placement and employs a light-emitting diode at 555 nm as its light source based on the EPA approved method adaptation.
| Range | 0.00 to 5.00 mg/L |
|---|---|
| Resolution | 0.01 mg/L |
| Accuracy | +/-0.02 mg/L +/-4% of reading |
| Light Source | LED @ 555 nm |
| Auto-Shut off | After 10 minutes of non-use |
The meter measures copper content in the 0.00 to 5.00 mg/L (ppm) range.
The meter measures copper content in the 0.00 to 5.00 mg/L range with a resolution of 0.01 mg/L.
The instrument turns off automatically after 10 minutes of non-use.
You can wait 45 seconds and press READ DIRECT, or use the countdown timer for the measurement.
