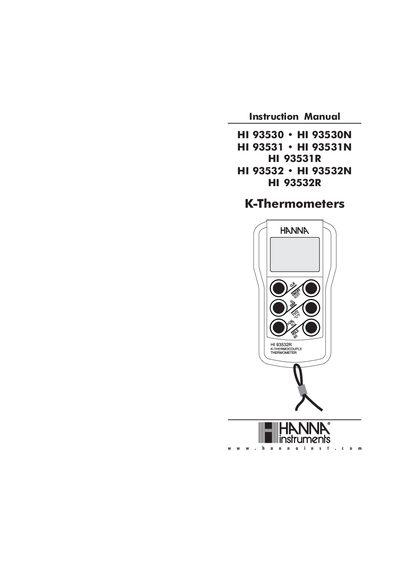

The instruction manual is for HI 93530, HI 93530N, HI 93531, HI 93531N, HI 93531R, HI 93532, HI 93532N, and HI 93532R K-type thermocouple thermometers. It mainly introduces the features and characteristics, usage methods, maintenance and maintenance of the products.
This document serves as the instruction manual for a range of Hanna Instruments K-type thermocouple thermometers. The covered models include single-channel units (HI 93530, HI 93531), dual-line display versions (N suffix), two-channel meters (HI 93532 series), and models with serial port interfaces (R suffix). These instruments are designed for reliable high-resolution temperature measurements in a wide range using K-type thermocouple probes.
| Probe Type | K-type thermocouple |
|---|---|
| Temperature Range (C) | -200.0 to 999.9°C |
| Temperature Range (F) | -328.0 to 999.9°F |
| Resolution (C) | 0.1°C (-149.9 to 999.9°C) |
| Accuracy (C) | +/-0.5°C (-100.0 to 999.9°C) |
| Battery | 3x1.5V AA (IEC LR6) batteries |
| Operating Time | approx. 500 hours of continuous use (BL off) |
| Dimensions | 150 x 80 x 36 mm |
| Weight | 235 g (8.3 oz.) |
The instruments are designed to use HI 766 K-thermocouple probes.
The batteries provide approximately 500 hours of continuous use with the backlight off.
All Hanna Instruments meters are warranted for two years against defects in workmanship and materials.
The HI 93531R and HI 93532R models are equipped with a serial port interface.
