Hanna Instruments HI 9063 Portable Waterproof Microprocessor K-Type Thermocouple Thermometer Instruction Manual

HI 9063 is a waterproof, microprocessor-based, K-type thermocouple thermometer, which provides very accurate measurements in a wide range of temperatures. The meter is also provided with low battery detection and BEPS (Battery Error Preventing System), which turns the unit off when the batteries are discharged avoiding erroneous readings caused by low battery level. HI 9063 features include autoranging capability, dual-level LCD for simultaneously displaying of maximum and minimum measured temperatures, °C/°F selection button and hold function.

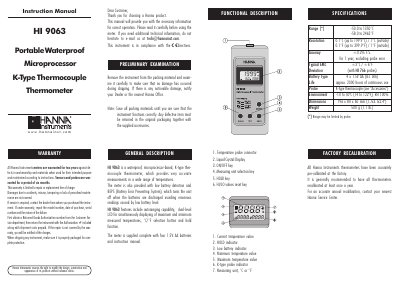

Hanna Instruments HI 9063 Portable Waterproof Microprocessor K-Type Thermocouple Thermometer Instruction Manual - cover page
Brand
Hanna Instruments
Category
Temperature sensors
Document type
User Manual
Language
English
Pages
2
File format
PDF
File size
505 KB
Published
10 July, 2012
Updated
29 September, 2023
MD5 checksum
851918C3D6F311722C867071D3401DC0

About this manual

The Hanna Instruments HI 9063 is a waterproof, microprocessor-based K-type thermocouple thermometer designed to provide accurate temperature measurements in a wide range. It features autoranging capability, dual-level LCD display for maximum and minimum values, °C/°F selection, and a hold function. The unit includes a Battery Error Preventing System (BEPS) that turns the device off when batteries are low to prevent erroneous readings.

What's inside

  • Preliminary Examination
  • Functional Description
  • Specifications
  • Operational Guide
  • Initial Preparation
  • Measuring Scale
  • Hold Mode
  • Battery Replacement
  • High/Low Temperatures
  • Accessories

Specifications

Temperature Range-50.0 to 1350°C / -58.0 to 2462°F
Resolution0.1°C (up to 199.9°C) / 1°C (outside)
Accuracy±0.2% F.S. for 1 year, excluding probe error
Battery Type4 x 1.5V AA (IEC LR6)
Typical Battery Lifeapprox. 2000 hours of continuous use
Probe TypeK-type thermocouple
Operating Environment-10 to 50ºC (14 to 122ºF); RH 100%
Dimensions196 x 80 x 60 mm (7.7x3.1x2.4")
Weight500 g (1.1 lb.)

Frequently asked questions

How do I switch between Celsius and Fahrenheit?

Press the °C/°F button to select the desired scale.

What happens when the battery is low?

A warning symbol blinks on the display, and the unit turns off if the level drops below 10%.

How do I activate the hold function?

Press the HOLD key; the measured temperature is held on the display until HOLD is pressed again.
