Ricoh RP400xxx1A Series Step-Up DC/DC Converter Datasheet

RP400xxx1A Series are high efficiency, step-up DC/DC converter ICs packaged in compact 5pin SOT23 or 6pin DFN(PLP). This converter starts up of low voltage (Typ.0.8V) operation from one to two alkaline or a nickel-metal-hydride (NiMH) or one-cell Lithium-ion (Li+) battery. This IC consists of a reference voltage unit with soft start, a chip enable circuit, an error amplifier, phase compensation circuits, a slope circuit, a PWM control circuit, a start-up circuit, a PWM/VFM mode control circuit, internal switches and a protection circuit. As a protection circuit, RP400xxx1A has a current limit circuit which limits the peak current of the inductor at each clock cycle. A low ripple high efficiency step up DC/DC converter can be composed of RP400xxx1A Series with only an inductor, a diode and capacitors. This converter is based on a fixed frequency current mode PWM control which goes to power save mode (VFM mode) at light load automatically. RP400xxx1A Series has built-in Anti-ringing switch to prevent switching node from ringing, when the converter enters the discontinuous current mode. The output voltage of RP400K001A can be set within 1.8~5.0V (recommended range of output voltage) by external divider resistors.

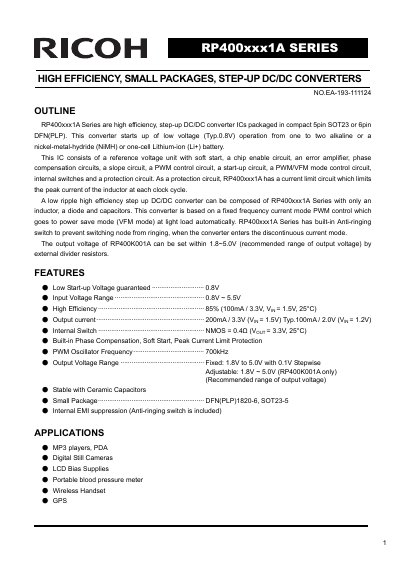

Ricoh RP400xxx1A Series Step-Up DC/DC Converter Datasheet - cover page
Brand
Ricoh
Document type
Datasheet
Language
English
Pages
16
File format
PDF
File size
473 KB
Published
09 July, 2012
Updated
28 September, 2023
Model
RP400x
MD5 checksum
5BF71627E9D9B5BB1F3FFEF4F23A2055

About this manual

The RP400xxx1A Series consists of high efficiency, step-up DC/DC converter ICs available in compact Spin SOT23 or 6pin DFN(PLP) packages. These devices are capable of starting up from very low voltages (Typ. 0.8V), making them suitable for operation from one to two alkaline or NiMH batteries, as well as single-cell Lithium-ion batteries.

The IC integrates a reference voltage unit with soft start, chip enable circuit, error amplifier, phase compensation circuits, and various protection features including peak current limit. It operates based on fixed frequency current mode PWM control which automatically switches to power save VFM mode at light loads. The output voltage can be set within 1.8V to 5.0V using external divider resistors.

What's inside

  • Outline
  • Features
  • Applications
  • Block Diagrams
  • Selection Guide
  • Pin Configuration
  • Absolute Maximum Ratings
  • Electrical Characteristics

Specifications

Start-up VoltageTyp. 0.8V
Input Voltage Range~0.8V ~5.5V
EfficiencyTyp. 85%
Output CurrentTyp. 200mA @ 3.3V
Internal Switch On-ResistanceTyp. 0.4 Ohm
PWM Oscillator Frequency700kHz
Output Voltage Range1.8V to 5.0V
Ambient Temperature Range-40 to +85 °C

Frequently asked questions

What is the minimum start-up voltage for this converter?

The guaranteed low start-up voltage is 0.8V.

Which battery types are supported by this series?

It supports one to two alkaline or NiMH batteries, and one-cell Lithium-ion (Li+) batteries.

What are the available package types?

The ICs are packaged in compact Spin SOT23 or 6pin DFN(PLP).
