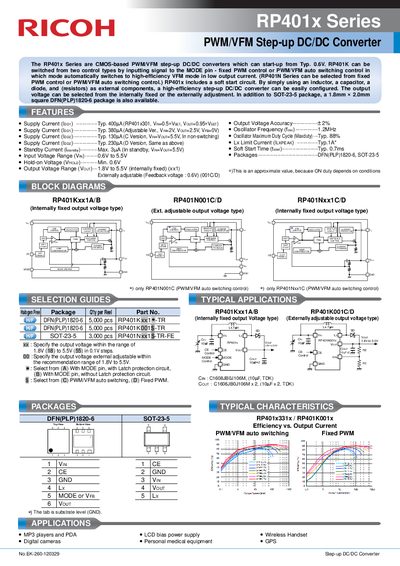

Ricoh RP401x Series PWM/VFM Step-up DC/DC Converter Datasheet

The RP401x Series are CMOS-based PWM/VFM step-up DC/DC converters which can start-up from Typ. 0.6V.

Brand: Ricoh
Category: DC/DC Converter
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 330 KB
Published: 09 July, 2012
Updated: 30 September, 2023
Model: RP401X
MD5 checksum: FEE135A39D6FA869C9841084728FE291
PDF: Ricoh RP401x Series PWM/VFM Step-up DC/DC Converter Datasheet PDF

About this manual

The RP401x Series are CMOS-based PWM/VFM step-up DC/DC converters capable of starting up from a typical 0.6V input. These devices can be configured using an inductor, capacitor, diode, and resistors to create a high-efficiency converter. The output voltage can be selected either from internally fixed levels or adjusted externally via a feedback voltage of 0.6V.

What's inside

Features
Block Diagrams
Packages
Typical Characteristics
Applications
Comparison with RP400x Series
Specifications

Specifications

Supply Current (Ipp1)	Typ. 400nA
Supply Current (Ipp2)	Typ. 230uA
Standby Current (Istanaby)	Max. 3uA
Output Voltage Range	1.8V to 5.5V
Oscillator Frequency	1.2MHz
Soft-start Time	0.7ms
Latch Protection Circuit	3.3ms (only A Version)

Frequently asked questions

What is the minimum input voltage for the RP401x Series?

The converters can start-up from a typical 0.6V input voltage.

Can the output voltage be adjusted externally?

Yes, the output voltage can be selected from internally fixed levels or adjusted externally using a feedback voltage of 0.6V.

What packages are available for the RP401x Series?

The series is available in SOT-23-5 and DFN(PLP)1820-6 packages.
