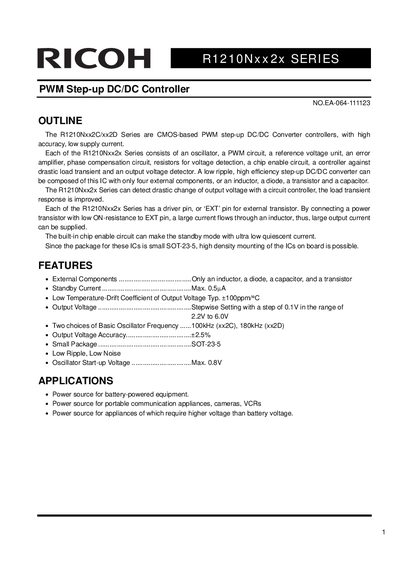

The R1210Nxx2C/xx2D Series are CMOS-based PWM step-up DC/DC Converter controllers, with high accuracy, low supply current.
The Ricoh R1210Nxx2x Series are CMOS-based PWM step-up DC/DC Converter controllers designed for high accuracy and low supply current. Each controller includes an oscillator, PWM circuit, reference voltage unit, error amplifier, phase compensation circuit, and a chip enable circuit. The series supports output voltage detection and drastic load transient response improvement.
| Package | SOT-23-5 |
|---|---|
| Output Voltage Range | 2.2V to 6.0V |
| Operating Temperature Range | -40 to +85 °C |
| Maximum Input Voltage | 8 V |
| Power Dissipation | 420 mW |
The output voltage can be set stepwise with a step of 0.1V.
The series offers 100kHz for xx2C models and 180kHz for xx2D models.
A low ripple, high efficiency step-up DC/DC converter can be composed with only four external components: an inductor, a diode, a transistor, and a capacitor.
