6551A, 6552A, 6553A, 6554A, and 6555A are a series of 500W DC power supplies produced by Xerox. This power supply can be controlled either from the front panel or via an analog programming voltage. When used in a test system, the fast up and down programming helps decrease test time. Quickly reacting protection features, including fast crowbar, CV/CC mode crossover and over-voltage protection help protect your valuable assemblies from damage. The linear topology produces very low ripple and noise, which allows you to make extremely accurate measurements of the devices which you are testing. Lab bench use is enhanced by the fan speed control, which helps to minimize the acoustic noise.

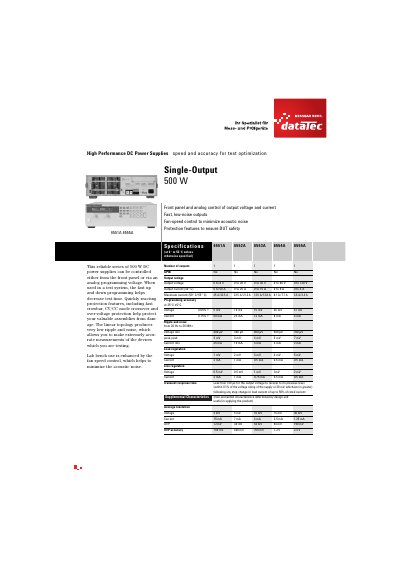

This document provides an overview of the Agilent 6551A through 6555A series of single-output, 500 W DC power supplies. These units are designed for high-speed and accurate test optimization, featuring linear topology for low ripple and noise. They can be controlled via the front panel or through analog programming and GPIB interfaces.
| Power | 500 W |
|---|---|
| Output Voltage Range | 10 V to 120 V |
| Output Current | 2 A to 50 A |
| Ripple and Noise | Less than 7 mV peak-peak |
| Transient Response Time | Less than 100 ps |
| Dimensions | 425.5 mm W x 132.6 mm H x 497.8 mm D |
| Weight | 25 kg (Net) |
The warranty period is one year.
Yes, the output terminals can be floated up to 240 Vdc from chassis ground.
The input power is 1,380 VA and 1,100 W at full load.
