HLMP-4000,HLMP-0800 are three leaded bicolor light sources designed for various applications where dual state illumination is required in the same package.

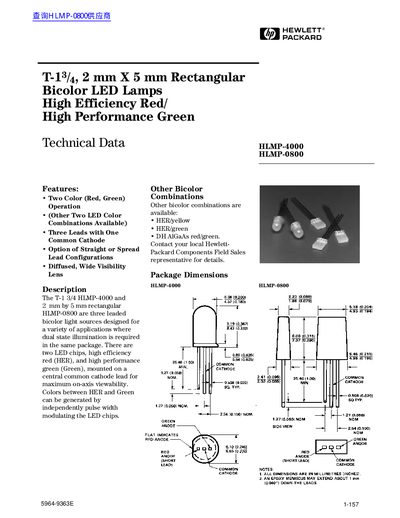

This document provides technical specifications for the T-1 3/4 and 2 mm by 5 mm rectangular HLMP-4000 and HLMP-0800 bicolor LED lamps. These three-leaded light sources feature a common cathode configuration with two independent chips: high efficiency red (HER) and high performance green. The LEDs are designed for applications requiring dual-state illumination within a single package, allowing color generation through pulse width modulation.
| Peak Forward Current | 90 mA |
|---|---|
| Average Forward Current | 25 mA |
| Operating Temperature Range | -20 to +85 °C |
| Reverse Voltage | 5 V |
| Peak Wavelength (Red) | 635 nm |
| Speed of Response | 90 ns (Red) / 500 ns (Green) |
| Forward Voltage (Red) | 1.9 V |
The document lists HER/yellow, HER/green, and DH AlGaAs red/green as other available bicolor combinations.
The HLMP-4000 is a T-1 3/4, 2 mm X 5 mm Rectangular package.
The device has two LED chips, high efficiency red and high performance green, mounted on a central common cathode lead.
