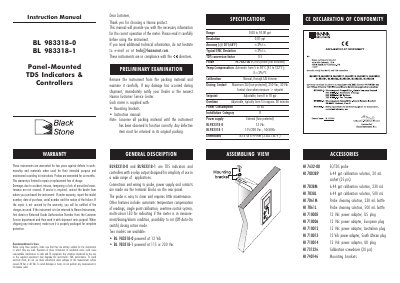

This document describes the specifications and features of the BL 983318-0 and BL 983318-1 panel-mounted TDS indicators and controllers. The measurement range is from 0.00 to 10.00 ppt, with a resolution of 0.01 ppt and an accuracy of ±2% f.s. The product features automatic temperature compensation and manual calibration. It also has adjustable setpoints and overtime settings. The power supply is external.
The Hanna BL 983318-0 and BL 983318-1 are panel-mounted TDS indicators and controllers designed for simplicity of use in a wide range of applications. They feature a relay output, automatic temperature compensation, and a multi-colour LED indicator for measurement, dosing, and alarm conditions. The BL 983318-0 model is powered at 12 Vdc, while the BL 983318-1 model is powered at 115 or 230 Vac.
| Range | 0.00 to 10.00 ppt |
|---|---|
| Resolution | 0.01 ppt |
| Accuracy | +M%ts at 20°C/68°F |
| TDS conversion factor | 0.5 |
| Temp. Compensation | Automatic from 5 to 50°C |
| Calibration | Manual, through CAL trimmer |
| Dosing Contact | Maximum 2A, 250 Vac, 30 Vdc |
| Power Consumption | 10 VA |
| Dimensions | 83 x 53 x 99 mm |
The instruments are warranted for two years against defects in workmanship and materials.
Simply remove the jumper on the rear panel to disable the overtime feature.
