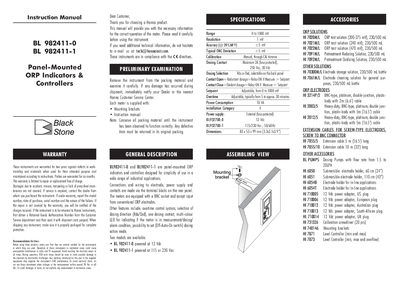

Hanna BL 982411-0/1 Panel-Mounted ORP Indicators Controllers Instruction Manual

The product is an ORP indicator and controller designed for simplicity of use in a wide range of industrial applications.

Brand: BL
Category: Industrial Supply
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 241 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9F7AE1E09D18F6E8225F11A0A31A6D84
PDF: Hanna BL 982411-0/1 Panel-Mounted ORP Indicators Controllers Instruction Manual PDF

About this manual

The Hanna BL 982411-0 and BL 982411-1 are panel-mounted ORP indicators and controllers designed for simplicity of use in a wide range of industrial applications. They feature a multi-colour LED indicator, an overtime control system, and selectable dosing direction (Rdx/Oxd). The BL 982411-0 model is powered at 12 Vdc, while the BL 982411-1 model is powered at 115 or 230 Vac.

What's inside

General Description
Specifications
Accessories
Assembling View
Rear Panel Connections
Functional Description
Operations
Operating the Meter
Calibration
Setpoint

Specifications

Range	0 to 1000 mV
Resolution	1 mV
Accuracy	±5 mV (@ 20°C/68°F)
EMC Deviation	±5 mV
Dosing Contact	Maximum 2A (fuse protected), 250 Vac, 30 Vdc
Power Consumption	10 VA
Dimensions	83 x 53 x 99 mm

Frequently asked questions

What is the warranty period for the instrument?

The instruments are warranted for two years against defects in workmanship and materials.

What is the warranty period for the probes?

Probes are warranted for six months.

How can the overtime feature be disabled?

The overtime feature can be disabled by removing the jumper on the rear panel.
