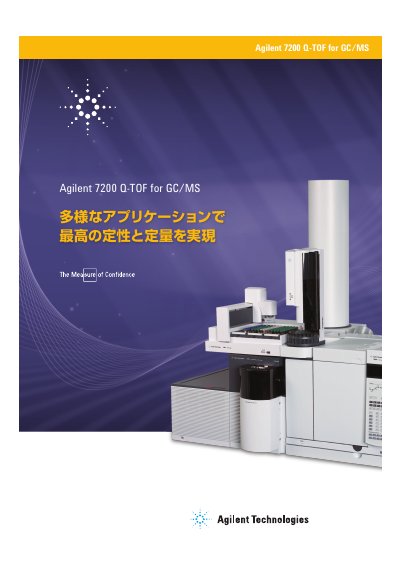

Agilent 7200 Q-TOF for GC/MS is a multi-purpose mass spectrometry system that provides the highest levels of qualitative and quantitative analysis. The system combines the separation capabilities of the Agilent 7890 series GC with the MS components of the 7000 series triple quadrupole GC/MS and 6500 series LC/Q-TOF systems to provide robust GC/MS operation, excellent selectivity, high-sensitivity full-scan acquisition, and fast data acquisition, as well as accurate mass data that facilitates molecular characterization and structural analysis.
The Agilent 7200 Q-TOF for GC/MS is described as the world's first quadrupole time-of-flight (Q-TOF) gas chromatography-mass spectrometry system. It combines the proven performance of the Agilent 7890 Series GC with TOF analyzer capabilities to provide high-resolution, accurate mass data for complex matrices and trace-level analysis.
Key features include a quadrupole ion trap collision cell for high-quality MS/MS spectra, orthogonal TOF technology, and an internal reference mass (IRM) correction system. The system supports up to 350°C temperature programming and includes a replaceable ion source that can be changed in approximately 30 minutes without breaking vacuum. This manual is written in Japanese.
The system achieves a resolution of 13,500 (FWHM), allowing it to easily distinguish between two compounds with nominal masses of 240 Da and an actual mass difference of just 0.0436 Da.
The new replaceable ion source (RIS) allows for changing the entire ion source assembly in approximately 30 minutes without breaking vacuum.
The system features a high-sensitivity extraction source capable of temperature programming up to 350°C.
