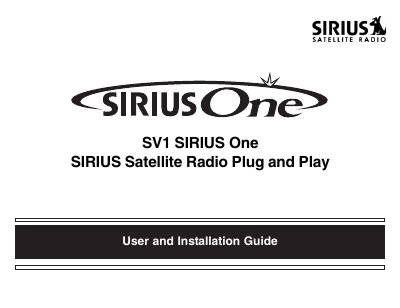

This manual introduces how to use the SV1 SIRIUS One SIRIUS Satellite Radio Plug and Play Receiver, you can enjoy its digital entertainment in your vehicle, home or boat.
The SV1 SIRIUS One is a satellite radio receiver designed for use in vehicles, homes, or boats. This manual covers safety precautions, package contents verification, and detailed installation steps including mounting options (visor, dash, windshield) and magnetic antenna placement.
Once installed, the guide explains how to connect power via the cigarette lighter, activate a subscription, and operate the device using the remote control. It details basic functions such as channel selection, display settings, and advanced features like FM presets, parental controls, and troubleshooting.
| Satellite Frequencies | 2322.293/2330.207 MHz |
|---|---|
| Terrestrial Frequencies | 2326.250MHz |
| Power Requirements | 9-16 Volts, Negative Ground, DC |
| Audio Output | 550mVrms (+/- 50mVrms) |
| Total Harmonic Distortion | <0.2% |
| Signal-to-noise Ratio | Greater than 73dB |
| Fuse Requirement | 2A ATC |
| Receiver Dimensions | 70mm x 113.2mm x 20.2mm (2.8" x 4.5" x .8") |
| Antenna Cable Length | 21' (single micro-cable) |
The optimum location is on the roof of the vehicle with a minimum unobstructed area of 12 inches by 12 inches and exactly 6½ inches from the rear roof edge.
The device requires 9-16 Volts DC with negative ground.
Press and hold the DISP button to change the orientation; the Receiver will remember this setting.
