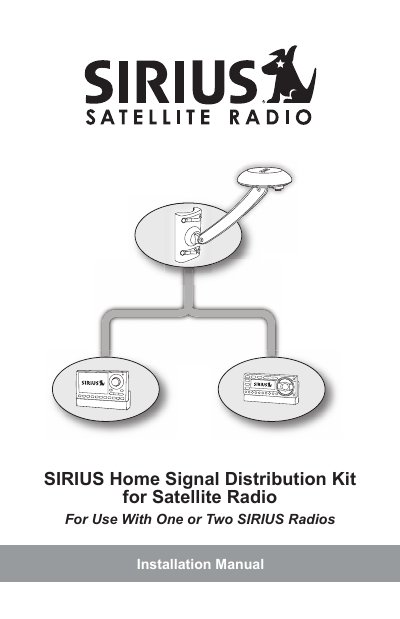

This manual introduces the use of SIRIUS Home Signal Distribution Kit for Satellite Radio. The product can be used to connect one or two SIRIUS radios, using standard RG-6 antenna cable. The antenna can be mounted on the outside of the house or other buildings, and connected to the radios via RG-6 cables.
This manual provides instructions for installing the SIRIUS Home Signal Distribution Kit, which allows one outdoor antenna to connect to one or two SIRIUS radios using standard RG-6 cable. The kit includes an outdoor antenna, a splitter (SRS-2VB), adapter cables, and mounting hardware. It is recommended that installation be performed by a professional if the user lacks experience with mechanical and electrical procedures.
| Splitter Model | SRS-2VB |
|---|---|
| Max RG-6 Cable Length (Antenna to Splitter) | 150 ft. |
| Max RG-6 Cable Length (Splitter to Radio) | 50 ft. |
| Compatible Cables | Standard RG-6 antenna cable |
The kit allows you to connect one or two SIRIUS radios using only one outdoor antenna.
A phillips-type screwdriver and a 3/8 in. wrench are needed; a power drill with a 3/32 in. drill bit may also be required.
The antenna should be located where it has a clear view of the SIRIUS satellites in the sky, free from obstructions like trees or buildings.
