The Agilent 7000B GC/MS Triple Quadrupole System with MassHunter Software offers excellent sensitivity and selectivity. The GC and MS components are designed for consistent sensitivity and accurate quantification of target substances in trace amounts in highly complex matrices. The Agilent 7000B system must be combined with the high-performance gas chromatograph 7890A.

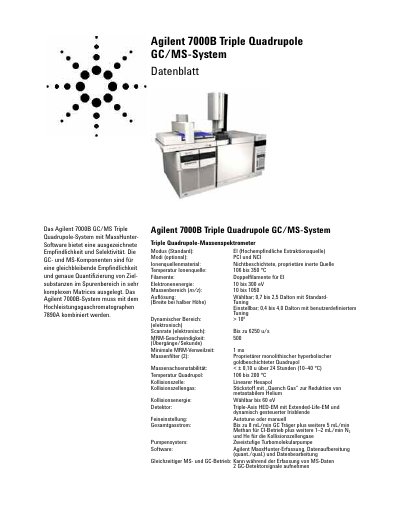

This document is a datasheet for the Agilent 7000B Triple Quadrupole GC/MS system, which is designed for high sensitivity and selectivity in analyzing target substances in complex matrices. The system requires combination with the Agilent 7890A gas chromatograph for operation. This manual is written in German.
| Ion Source Material | Non-coated, proprietary inert source |
|---|---|
| Filaments | Double filaments for EI |
| Resolution (Standard) | 0.7 to 2.5 Dalton |
| Mass Filter Type | Proprietary monolithic hyperbolic gold-coated quadrupole |
| GC Carrier Gas Flow | Up to 8 mL/min |
| System Dimensions | 35 cm (W) x 86 cm (H) x 47 cm (D) |
| System Weight | 59 kg |
| EI MRM IDL | 12 fg or less |
The Agilent 7000B system must be combined with the High Performance Gas Chromatograph 7890A.
The Agilent 7000B Triple Quadrupole GC/MS System must be combined with the High Performance Gas Chromatograph 7890A.
