BUK136-50L is a logic level protected power MOSFET from Philips Semiconductors. It has a maximum voltage of 50V, a maximum current of 40A, a maximum power dissipation of 107W, and a working temperature range of -55℃ to 150℃. Its on-state resistance is 20mΩ.

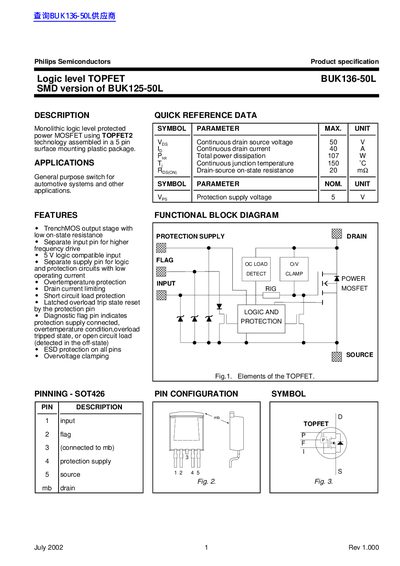

This document is a product specification datasheet for the Philips BUK136-50L, a logic level TOPFET power MOSFET. It is described as an SMD version of the BUK125-50L, assembled in a 5-pin SOT426 surface mounting plastic package. The device utilizes TrenchMOS technology and is designed for use as a general-purpose switch in automotive systems and other applications.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 40 A |
| Total power dissipation | 107 W |
| Protection supply voltage | 5 V |
| Package type | SOT426 |
The device supports a maximum continuous drain current of 40 A.
This MOSFET has a maximum total power dissipation rating of 107 W.
The device can operate continuously up to a junction temperature of 150 °C.
The protection supply must be connected at a minimum of 4 V and a maximum of 6 V.
