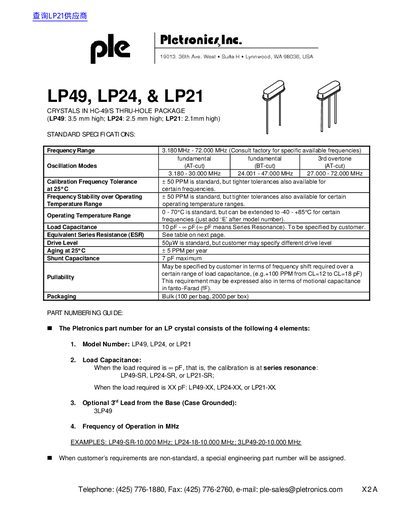

This document describes Pletronics' X2A LP49, LP24, and LP21 crystals, along with their specifications and characteristics.
This document provides standard specifications for Pletronics LP49, LP24, and LP21 crystals housed in HC-49/S through-hole packages. It details frequency ranges, oscillation modes, temperature stability, and drive levels for these components.
| Frequency Range | 3.180 MHz - 72.000 MHz |
|---|---|
| Calibration Frequency Tolerance | +50 PPM |
| Operating Temperature Range | 0 - 70°C |
| Load Capacitance | 10 pF - pF |
| Aging at 25°C | +5 PPM per year |
| Shunt Capacitance | 7 pF maximum |
| Drive Level | 50uW |
The standard calibration frequency tolerance at 25°C is +50 PPM.
The standard operating temperature range is 0 - 70°C.
The standard drive level is 50uW.
