PE2245B PECL Series is 10.00 MHz - 170.00 MHz standard specifications, including overall frequency stability, operating temperature range, supply voltage (Vcc), output waveform, output load, enable/disable option (E/D) (as applicable).

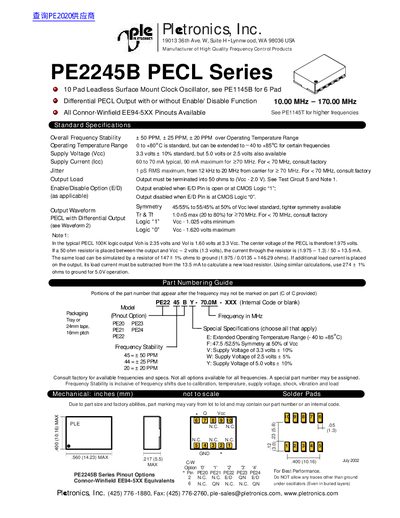

This document is a datasheet for the Pletronics PE2245B series of 10-pad leadless surface mount clock oscillators. These devices feature a differential PECL output with optional enable/disable functionality and operate within a frequency range of 10.00 MHz to 170.00 MHz.
| Frequency Range | 10.00 MHz — 170.00 MHz |
|---|---|
| Frequency Stability | +50 PPM, +25 PPM, +20 PPM |
| Operating Temperature Range | 0 to +80°C (Standard) |
| Supply Voltage | 3.3 volts + 10% |
| Supply Current | 60 to 70 mA typical |
The standard supply voltage is 3.3 volts with a +10% tolerance.
The device operates from 10.00 MHz to 170.00 MHz.
The standard supply voltage is 3.3 volts plus or minus 10%.
The maximum supply current is 90 mA for frequencies greater than 70 MHz.
