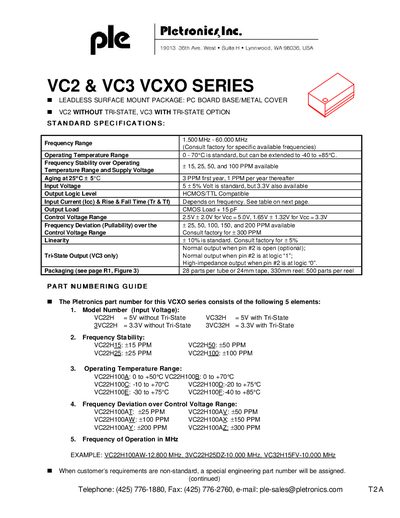

T2A VC2 & VC3 VCXO SERIES are leadless surface mount package VCXOs that provide frequency ranges from 1.500 MHz to 60.000 MHz, frequency stability of ± 15, 25, 50, and 100 PPM available, operating temperature range of 0 - 70°C, but can be extended to -40 to +85°C.
The VC2 and VC3 VCXO series from Pletronics are leadless surface‑mount devices offering a wide frequency range and configurable options. Standard specifications include a 1.500 MHz‑60.000 MHz frequency range, operating temperature from 0 °C to 70 °C (extendable to –40 °C to +85 °C), and multiple frequency‑stability grades.
The series provides flexible input voltages (5 V ± 5 % or 3.3 V), HCMOS/TTL‑compatible output logic, and optional tri‑state output for the VC3 version. Detailed pin‑out diagrams, recommended land patterns, and test circuits are included for design integration.
| Frequency Range | 1.500 MHz – 60.000 MHz |
|---|---|
| Operating Temperature Range | 0 °C – 70 °C (standard), –40 °C – +85 °C optional |
| Frequency Stability | +15, +25, +50, +100 PPM |
| Aging | 3 PPM first year, 1 PPM per year thereafter |
| Input Voltage | 5 V ± 5 % (standard), 3.3 V optional |
| Output Logic Level | HCMOS/TTL compatible |
| Output Load | CMOS load + 15 pF |
| Control Voltage Range | 2.5 V + 2.0 V (Vcc=5 V), 1.65 V + 1.32 V (Vcc=3.3 V) |
| Frequency Deviation | +25, +50, +100, +150, +200 PPM |
| Linearity | +10 % standard, +5 % optional |
| Tri‑State Output (VC3 only) | Normal, high‑impedance, or logic‑1 output depending on pin #2 |
| Typical Input Current & Rise/Fall Times (15 pF load) | 10 mA, Rise 3.5 ns, Fall 5.0 ns (1.5‑20 MHz) |
The series covers 1.500 MHz to 60.000 MHz.
Standard range is 0 °C to 70 °C, extendable to –40 °C to +85 °C.
Yes, the VC3 version includes an optional tri‑state output.
Standard 5 V ± 5 % is provided, and a 3.3 V option is also available.
