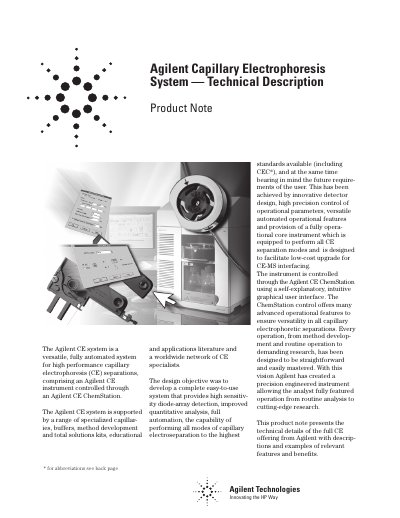

This document presents the technical details of the Agilent Capillary Electrophoresis System, including high sensitivity diode-array detection, improved quantitative analysis, full automation, the capability to perform all modes of capillary electroseparation, and the potential for low-cost upgrade for CE-MS interfacing. The instrument is controlled through the Agilent CE ChemStation, which offers an intuitive graphical user interface and advanced operational features. It is designed to meet the needs of routine analysis as well as cutting-edge research.
The Agilent CE-1000 Capillary Electrophoresis System is a versatile, fully automated instrument designed for high-performance capillary electrophoresis (CE) separations. It features high-sensitivity diode-array detection, improved quantitative analysis capabilities, and full automation to support all modes of capillary electroseparation, including CEC. The system is controlled via the Agilent CE ChemStation, offering an intuitive graphical user interface for method development and routine operation.
| Injection pressure range | -50 to 50 mbar |
|---|---|
| Injection time range | 0 to 1000 seconds |
| Injection voltage range | -30 to 30 kV |
| External pressure source | up to 12 bar |
| Sample carousel capacity | 48-position |
| Temperature range for carousel | 10 to 40 °C |
The system provides two injection modes: pressure injection and electrokinetic injection.
Yes, the instrument is designed to facilitate low-cost upgrade for CE-MS interfacing.
The external pressure source can be used up to 12 bar for CEC separations.
