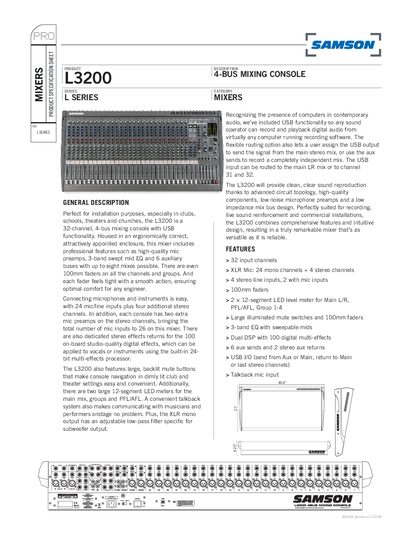

L3200 4-BUS MIXING CONSOLE is a professional mixing console with high-quality mic preamps, 3-band swept mid EQ and 6 auxiliary buses with up to eight mixes possible.
The Samson L3200 is a 32-channel, 4-bus mixing console designed for installation purposes in clubs, schools, theaters, and churches. It features 24 mono XLR mic inputs, 4 stereo line inputs, and 100mm faders for all channels and groups. The console includes high-quality mic preamps, 3-band swept mid EQ, and 6 auxiliary buses.
| Channels | 32 input channels |
|---|---|
| Mic Inputs | 24 mono channels + 4 stereo channels |
| Line Inputs | 4 stereo line inputs, 2 with mic inputs |
| Faders | 100mm faders |
| LED Meters | 2x 12-segment LED level meter |
| EQ | 3-band EQ with sweepable mids |
| DSP Effects | Dual DSP with 100 digital multi-effects |
| Aux Sends | 6 aux Sends and 2 stereo aux returns |
| USB IO | USB IO (send from Aux or Main, return to Main or last stereo channels) |
| Talkback | Talkback mic input |
| Maximum Output Level | +24 dB (MAIN L/R) @ 10kΩ |
| Frequency Response | 20 Hz-20 kHz, +1/-2 dB |
| Hum and Noise | -128 dBu: Equivalent input noise |
| Power Consumption | 75W |
| Weight | 40 Ibs (18.1 kg) |
It is perfect for installation purposes, especially in clubs, schools, theaters and churches.
Yes, it includes USB functionality so any sound operator can record and playback digital audio from virtually any computer running recording software.
The L3200 features dual DSP with 100 selectable presets.
