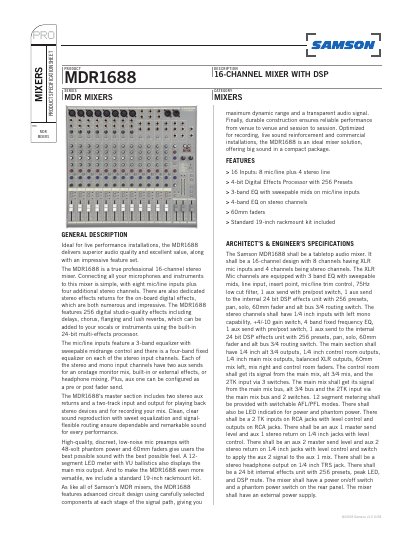

The document describes the product specifications and features of the MDR1688 16-CHANNEL Mixer from the MDR Mixers series. The mixer offers maximum dynamic range and a transparent audio signal, making it suitable for recording, live sound reinforcement, and commercial installations. It features 16 inputs, a 4-bit Digital Effects Processor with 256 presets, a 3-band EQ with sweepable mids on mic/line inputs, a 4-band EQ on stereo channels, 60mm faders, and a standard 19-inch rackmount kit.
The Samson MDR1688 is a professional 16-channel stereo mixer designed for live performance installations, recording, and commercial applications. It features 8 mic/line inputs with 3-band equalizers and 4 stereo line inputs, along with a 24-bit digital effects processor offering 256 presets for delays, chorus, flanging, and reverbs. The unit includes high-quality mic preamps with 48-volt phantom power and 60mm faders, plus a standard 19-inch rackmount kit.
| Frequency Response | 10 Hz to 45 kHz, +/-0.4 dB |
|---|---|
| Distortion (THD&N) | 0.05% at +4 dBu, 1 kHz |
| Gain Range (MIC) | 0 dB to +40 dB |
| Signal to Noise Ratio | 105 dB |
| Dimensions | 16" x 16.7" x 2.6" (405mm x 425mm x 65mm) |
| Weight | 12.87 lbs (5.85 kg) |
| Inputs | 16 Inputs: 8 mic/line plus 4 stereo line |
| Effects Processor | 4-bit Digital Effects Processor with 256 Presets |
The frequency response ranges from 10 Hz to 45 kHz with a tolerance of +/-0.4 dB.
The mixer weighs 12.87 lbs, which is equivalent to 5.85 kg.
The dimensions are 16 inches wide, 16.7 inches deep, and 2.6 inches high.
