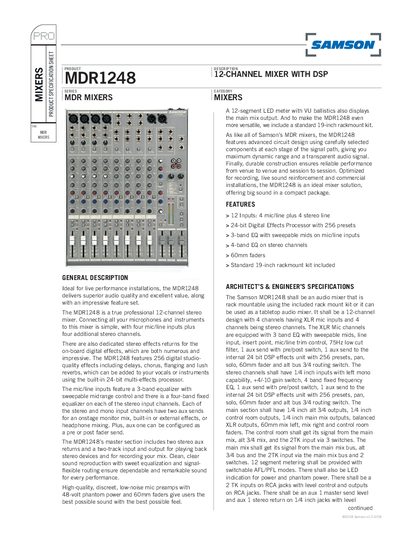

The MDR1248 is a 12-channel MDR series mixer with DSP from Samson, featuring a 12-segment LED meter, 24-bit digital effects processor and 256 presets, as well as 60mm faders.
The Samson MDR1248 is a professional 12-channel stereo mixer designed for live performance installations, recording, and commercial applications. It features a 24-bit digital effects processor with 256 presets, high-quality mic preamps with 48-volt phantom power, and 60mm faders. The unit includes a standard 19-inch rackmount kit and offers flexible signal routing with dedicated stereo effects returns.
| Frequency Response | 10 Hz to 45 kHz, +/-0.4 dB |
|---|---|
| Distortion (THD&N) | 0.05% at +4 dBu, 1 kHz |
| Gain Range (MIC) | 0 dB to +40 dB |
| Signal to Noise Ratio (SNR) | 105 dB |
| Stereo Input Channels Distortion | 0.005% at +4 dBu, 1 kHz |
| Max Output | +22 dBu balanced XLR |
| Dimensions | 16" x 12.3" x 2.6" (405mm x 313mm x 65mm) |
| Weight | 9.79 lbs (4.45kg) |
It is ideal for live performance installations, optimized for recording, live sound reinforcement, and commercial installations.
The MDR1248 is a 12-channel design with four mic/line inputs plus four additional stereo channels.
The unit measures 16" x 12.3" x 2.6" and weighs 9.79 lbs.
