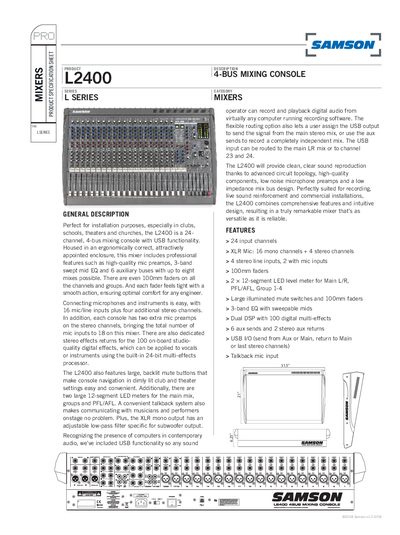

The L2400 is a 24-channel, 4-bus mixing console with USB functionality, perfect for installation purposes, especially in clubs, schools, theaters and churches
The Samson L2400 is a tabletop audio mixer designed for installation purposes in clubs, schools, theaters, and churches. It features a 24-channel design with 16 mono mic inputs and 4 stereo channels, equipped with high-quality mic preamps and 3-band swept mid EQs on the main channels.
The console includes professional features such as dual DSP units with 100 selectable digital multi-effects presets, USB connectivity for recording and playback, and a talkback system. It offers flexible routing options via 6 auxiliary buses and dedicated stereo effects returns.
| Channels | 24 input channels (16 mono + 4 stereo) |
|---|---|
| Mic Inputs | 16 XLR mic inputs |
| Stereo Line Inputs | 4 stereo line inputs |
| Faders | 100mm faders on all channels and groups |
| DSP Effects | 24-bit multi-effects processor with 100 presets |
| Auxiliary Buses | 6 aux Sends and 2 stereo aux returns |
| USB Functionality | USB /O (send from Aux or Main, return to Main) |
| Frequency Response | 20 Hz-20 kHz, +1/-2 dB |
| Power Consumption | 60W |
It is a 24-channel, 4-bus mixing console with USB functionality designed for installation purposes in clubs and theaters.
The maximum output level for MAIN L/R is +24 dB at 1 kHz with 0.5% THD.
