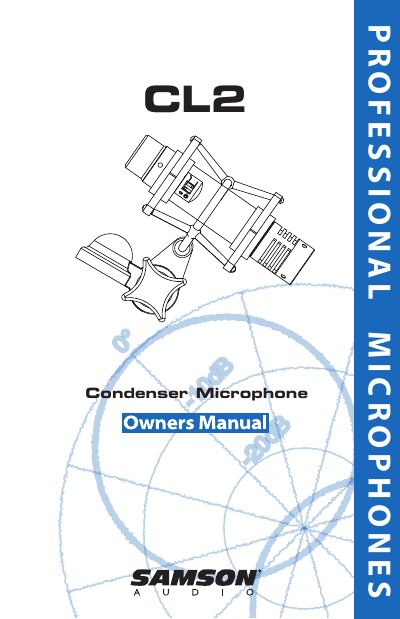

This document is the user manual of CL2 Condenser Microphone. It introduces the features and characteristics of the product, including the usage methods, polar characteristics, application scenarios, etc.
The Samson CL2 is a pencil-style, externally biased true capacitor pressure gradient condenser microphone designed for vocals and instruments. It is sold as a matched pair kit featuring interchangeable capsules that allow users to switch between cardioid and omni polar patterns for different recording applications.
The manual details the setup process, including connecting phantom power, adjusting signal levels using mic trim controls, and utilizing built-in switches such as the -10dB PAD and the 80Hz Hi-Pass Filter. It also explains how to change capsules and provides guidance on microphone placement.
| Frequency Response | Extended range linear frequency response |
|---|---|
| SPL Capability (Cardioid) | 141 dB |
| SPL Capability (Omni) | 138 dB |
| Hi-Pass Filter Cutoff | 80Hz |
| Connector | Gold plated XLR Connector |
The CL2 requires phantom power, which is standard on most mixers and recorders. An external phantom supply can also be used if necessary.
When set to the -10dB position, the PAD lowers the microphone's input sensitivity by 10dB to handle high sound pressure levels.
The kit includes interchangeable capsules; select the Cardioid capsule for a heart-shaped icon or the Omni capsule for an 'O' icon to change the pickup pattern.
