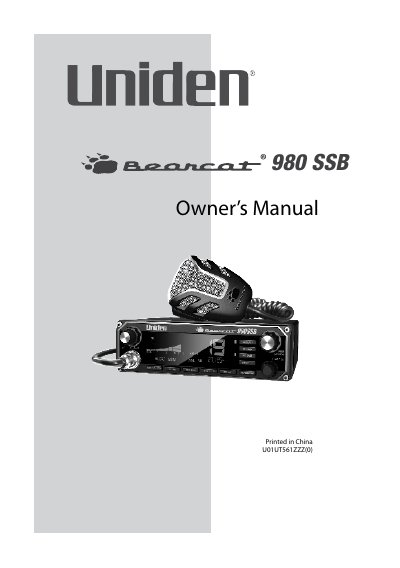

This manual describes the functions and usage of Bearcat 980 SSB CB 2-way mobile radio.
The Uniden Bearcat 980 SSB is a Citizens Band (CB) mobile radio transceiver designed for use in the CB Radio Service. It operates on 40 AM frequencies and includes features such as SSB (Single Sideband) capability, weather alert mode, and noise cancellation. The device supports both mobile and marine installations and includes a two-year extended warranty.
| Power Input | 13.8VDC |
|---|---|
| Antenna Impedance | 50 ohms |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Output Power AM | 4 watts |
| Output Power USB/LSB | 12 W PEP |
| Receiver Sensitivity AM | 0.5 µV |
| Receiver Sensitivity USB/LSB | 0.25 µV |
| Dimensions | 7.25 in. x 7.5 in. x 2.25 in. |
| Weight | 2.2 Pounds |
Channel 9 is reserved for emergencies involving the immediate safety of individuals or protection of property.
Press MIC Gain, then press PTT and turn the main control to adjust the level up to 100% modulation.
It provides 3-way control of ANL (Automatic Noise Limiter) or NB (Noise Blanker) features to reduce external noise or interference.
