Uniden PRO340XL is an advanced portable radio designed for use in the Citizens Band Radio Service. It features superheterodyne circuitry, phase locked loop frequency control, and flexible power options.

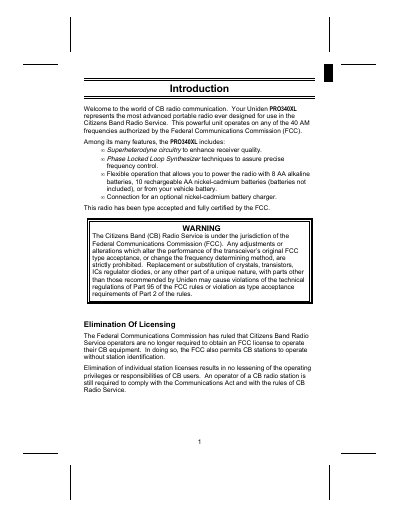

This document is the operating guide for the Uniden PRO340XL portable Citizens Band (CB) radio. It introduces the device's advanced features, including superheterodyne circuitry and phase-locked loop synthesizer technology, and explains its compliance with FCC regulations regarding licensing and operation.
| Channels | 40 AM |
|---|---|
| Frequency Range | 26.965 to 27.405 MHz |
| Frequency Control | Phase Locked Loop (PLL) synthesizer |
| Frequency Tolerance | ± 0.005% |
| Operating Temperature | -22° F to +122° F |
| Input Voltage | 12.0 VDC nominal |
| Transmitter Power Output | Selectable 1 watt or 4 watts |
| Modulation | Class B amplitude modulation |
| Receiver Sensitivity | 0.7 µV for 10 dB |
| Size | 2-5⁄8" (W) x 1-1⁄2" (D) x 5-1⁄2" (H) |
No, you must not mix alkaline batteries with nickel-cadmium batteries.
No, the FCC has ruled that Citizens Band Radio Service operators are no longer required to obtain an FCC license.
Channel 9 is reserved by the FCC for emergency communications involving the immediate safety of individuals or the protection of property.
