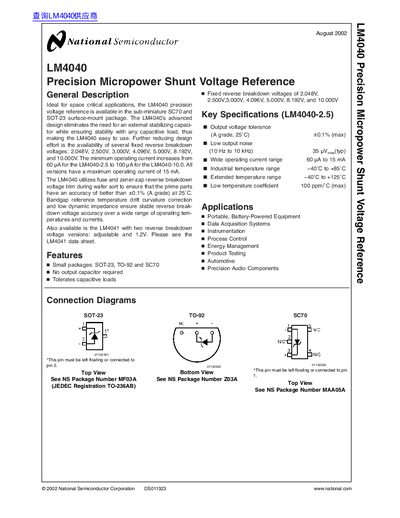

The LM4040 precision micropower shunt voltage reference is ideal for space critical applications. It is available in the sub-miniature SC70 and SOT-23 surface-mount package. The LM4040's advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4040 easy to use.
The LM4040 is a precision micropower shunt voltage reference designed for space-critical applications. It is available in sub-miniature SC70 and SOT-23 surface-mount packages and eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load. The device offers fixed reverse breakdown voltages ranging from 2.048V to 10.000V and is suitable for portable equipment, data acquisition systems, and instrumentation.
| Fixed reverse breakdown voltages | 2.048V, 2.500V, 3.000V, 4.096V, 5.000V, 8.192V, and 10.000V |
|---|---|
| Output voltage tolerance (A grade, 25˚C) | ±0.1% (max) |
| Low output noise (10 Hz to 10 kHz) | 35 µVrms(typ) |
| Minimum operating current (LM4040-2.5) | 60 µA |
| Maximum operating current | 15 mA |
| Industrial temperature range | −40˚C to +85˚C |
| Extended temperature range | −40˚C to +125˚C |
| Low temperature coefficient | 100 ppm/˚C (max) |
The LM4040 is available in the sub-miniature SC70 and SOT-23 surface-mount package.
No, the LM4040's advanced design eliminates the need for an external stabilizing capacitor.
The output voltage tolerance for A grade at 25˚C is ±0.1% (max).
