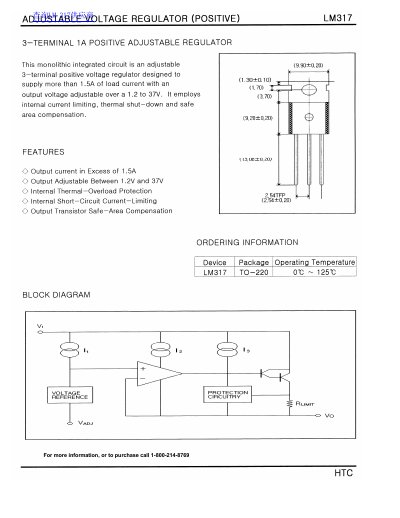

HTC LM317 Adjustable Voltage Regulator Datasheet

This document provides information on querying LM317 suppliers. The LM317 is a voltage regulator with adjustable voltage capabilities.

Brand: HTC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 201 KB
Published: 03 July, 2012
Updated: 28 September, 2023
MD5 checksum: 010CFA80C714957F3B943BC693C8C830
PDF: HTC LM317 Adjustable Voltage Regulator Datasheet PDF

About this manual

The document is a technical datasheet for the HTC LM317, a 3-terminal adjustable positive voltage regulator. It is designed to supply more than 1.5A of load current with an output voltage adjustable from 1.2V to 37V. The device features internal current limiting, thermal shut-down, and safe-area compensation to ensure reliable operation.

What's inside

Features
Ordering Information
Block Diagram
Absolute Maximum Ratings
Electrical Characteristics
Typical Applications

Specifications

Output Current	In Excess of 1.5A
Output Voltage Range	1.2V to 37V

Frequently asked questions

What is the output voltage adjustment range?

The output voltage is adjustable between 1.2V and 37V.

What is the maximum output current?

The device can supply more than 1.5A of load current.
