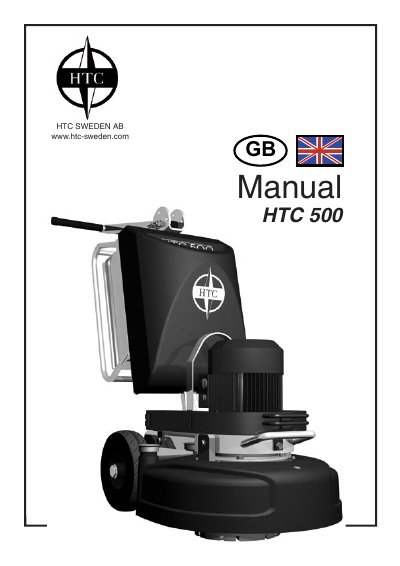

The HTC 500 grinder user manual provides safety guidelines, technical data, operation, maintenance, and troubleshooting instructions.
This manual covers the delivery inspection, commissioning, and safe use of the HTC 500 grinder. It includes safety regulations, CE marking information, and a declaration of conformity for industrial environments.
The document also contains detailed technical specifications, operation procedures, maintenance steps, parts lists, exploded diagrams, error codes, and troubleshooting advice to help users keep the machine running efficiently.
| Motor power | 4.0 kW |
|---|---|
| Maximum current load | 16 A |
| Supply voltage | 3x400V |
| Machine weight | 147 kg |
| Grinding diameter | 500 mm |
| Rotational speed | 300-1300 rpm |
| Water tank volume | 17 l |
| Grinding discs | 3x220 |
Operators must wear boots with steel toe caps, goggles, protective gloves, and ear muffs.
The machine should be lifted only using the intended lifting bow, never by the handle, motor, or chassis.
Only cold water may be filled into the tank; no chemicals are allowed.
