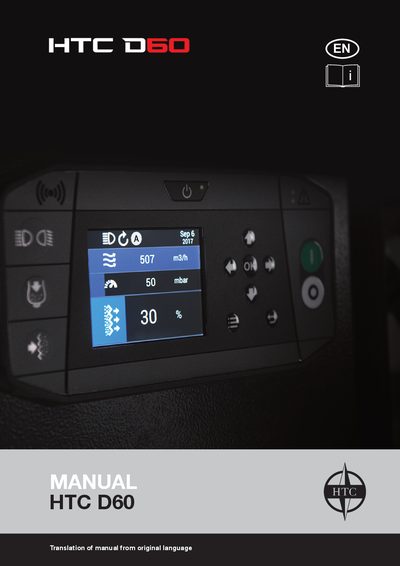

User manual for the HTC D60 industrial dust extractor, covering operation, maintenance, troubleshooting, and technical specifications.
This manual provides instructions for the HTC D60 dust extractor, designed for use with HTC floor grinders to create a dust-free environment during the dry grinding of stone and concrete floors. It details the machine's features, including an integrated pre-separator and two-stage filter system, as well as safety guidelines and operational procedures.
| Motor power | 5.5 kW / 7.5 hp or 6.3 kW / 8.5 hp |
|---|---|
| Current | 30 A or 15 A |
| Voltage | 180 – 240V 3 ~ or 380 – 415V 3 ~ or 440 – 480V 3 ~ |
| Total machine weight | 179 kg |
| Max. theoretical airflow (50 Hz) | 530 m³/h |
| Max. vacuum | 375 mbar |
| Filter area, main filter | 4 m² |
| HEPA filter class | H13 |
It is designed for the dry vacuuming of dust particles, such as concrete, wood, and stone, in conjunction with floor grinders.
The dust extractor can be controlled from the HTC DURATIQ grinder.
The recommended minimum cable area is 6.0 mm² (AWG10) or 2.5 mm² (AWG14).
