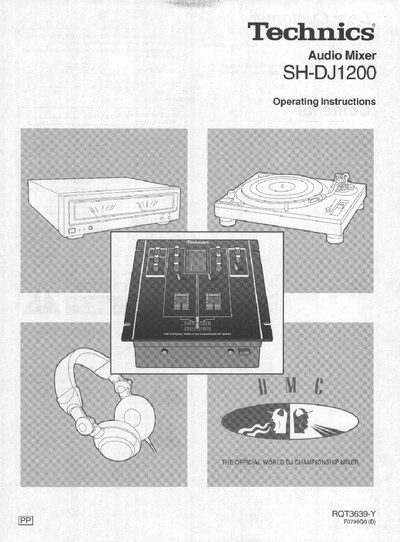

This manual covers safety warnings, installation environment, placement, and connection procedures for the Technics SH‑DJ1200 audio mixer. It includes detailed precautions, recommended ventilation clearance, and guidance on powering and mounting the unit.
The guide also describes the mixer’s controls, technical specifications, troubleshooting steps, and maintenance procedures, helping users achieve optimal performance and safe operation.
| Input sensitivity (PHONO) | 1.5–15 mV, 47 kΩ |
|---|---|
| Input sensitivity (LINE) | 100–1000 mV, >10 kΩ |
| Nominal output voltage (LINE) | 1 V, 600 Ω |
| Maximum output voltage (LINE) | 8 V |
| Power consumption | 15 W |
| Dimensions | 260 × 102 × 305 mm |
| Weight | 3.4 kg |
| Frequency response (LINE) | 10 Hz–70 kHz (-3 dB) |
| Noise floor | <0.2 mV |
Turn down the monitor volume and plug the headphones into the headphones jack before use.
Leave at least 10 cm (4 inches) of space behind the mixer.
Check that the power cord is properly plugged in and the outlet is supplying power.
No, the unit has no user‑serviceable parts; servicing must be performed by qualified personnel.
