This is a highly sensitive miniature tiepin-type microphone that uses a batteryless plug-in power system and does not require batteries.

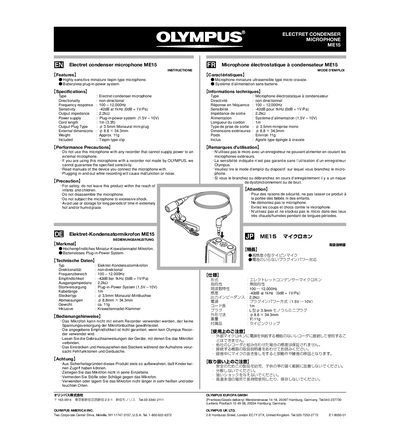

This document provides instructions for the Olympus ME15, a highly-sensitive miniature tiepin-type electret condenser microphone. It features a batteryless plug-in-power system designed for use with compatible recording devices.
| Type | Electret condenser microphone |
|---|---|
| Directionality | non-directional |
| Frequency response | 100- 12,000Hz |
| Sensitivity | -42dB at 1kHz |
| Output impedance | 2.2kQ |
| Power supply | Plug-in-power system (1.5V— 10¥V) |
| Cord length | 1m |
| Output Plug Type | 3.5mm Monaural mini-plug |
| External dimensions | 8.8 X 34.3mm |
| Weight | Approx. 11g |
No, it uses a batteryless plug-in-power system.
The frequency response is 100- 12,000Hz.
No, plugging in-and-out while recording will cause malfunction or noise.
