Olympus ME51S Stereo Microphone Instructions

ME51S Stereo Microphone is a high quality stereo microphone produced by Olympus. It features direct connection to a microphone jack and a clip to attach the microphone to a tie or pocket.

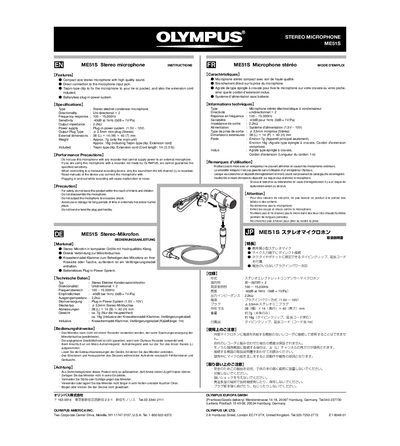

Olympus ME51S Stereo Microphone Instructions - cover page
Brand
Olympus
Document type
User Manual
Language
English
Pages
1
File format
PDF
File size
86 KB
Published
03 July, 2012
Updated
30 September, 2023
MD5 checksum
8A69F58095B9E4BE20412E0978E2FC62

About this manual

The Olympus ME51S is a batteryless plug-in-power stereo microphone designed with a compact size and high-quality sound. It features a tiepin-type clip to attach it to clothing or pockets and includes an extension cord for flexible positioning. The device connects directly to the microphone input jack of compatible recording devices.

What's inside

  • [Features]
  • [Specifications]
  • [Performance Precautions]
  • [Precaution]

Specifications

TypeStereo electret condenser microphone
DirectionalityUni-directional x 2
Frequency response100 — 15,000Hz
Sensitivity-40dB at 1kHz (OdB = 1V/Pa)
Power supplyPlug-in-power system (1.5V — 10V)
Output plug type3.5mm mini-plug (Stereo)
External dimensions38 (L) x 14 (W) x 40 (T) mm
Weight (main unit)Approx. 7g

Frequently asked questions

Does this microphone require batteries?

No, it uses a batteryless plug-in-power system.

What is included in the package?

The package includes the microphone, a tiepin-type clip, and an extension cord (1m length).

Can I use this microphone with a non-Olympus recorder?

Yes, but Olympus cannot guarantee the specified sensitivity if used with a recorder not made by Olympus.

What happens if I connect it to a monaural device?

Only the sound from the left channel (L) will be recorded.
